      1. Ov7670 camera module module ov7670 module MCU collection camera
        Ov7670 camera module module ov7670 module MCU collection camera
        Ov7670 camera module module ov7670 module MCU collection camera
        Ov7670 camera module module ov7670 module MCU collection camera
        Ov7670 camera module module ov7670 module MCU collection camera
        Ov7670 camera module module ov7670 module MCU collection camera
        Ov7670 camera module module ov7670 module MCU collection camera

        Ov7670 camera module module ov7670 module MCU collection camera

        Model NO.
        Ov7670 camera module
        Price:
        USD 4.00-5.00 / piece
        Minimum order quantity:
        1 piece
        Supply Ability:
        10000.0 piece / Week
        Country of Origin:
        SHENZHEN
        Quantity:
        • Type:LOGIC ICS
        • Type:integrated circuit
        • Place of Origin:CN;GUA
        • Model Number:Ov7670 camera module
        • Brand Name:CHINA
        • D/C:2016+
        • Package:Ov7670 camera module
        • Description:Ov7670 camera module

        Ov7670 camera module module ov7670 module MCU collection camera

        Product Description

        ?

        Module pin definition as shown in figure:


        3V3----- input supply voltage (recommended to use 3.3, 5V can also be, but not recommended)
        GDN----- access point
        SIO_C---SCCB interface of the control clock (Note: some low-level microcontroller needs to pull control, and the I2C interface is similar)
        SIO_D---SCCB interface serial data input (out) the end (Note: part of the lower microcontroller needs to pull control, and I2C interface similar)
        VSYNC--- frame synchronization signal (output signal)
        HREF---- line synchronization signal (output signal)
        PCLK---- pixel clock (output signal)
        D0-D7--- data port (output signal)
        RESTE--- reset port (normal use pull high)
        PWDN---- power consumption selection mode (normal use pull low)
        OV7670 image sensor, small size, low operating voltage, providing all the features of a single chip VGA camera and image processor. Through the SCCB bus control, you can output the whole frame, sub sampling, take a variety of ways, such as the resolution of the 8 bits of data. The product VGA image up to 30 frames per second. Users can completely control the quality of the image, data format and transmission mode. All image processing functions including gamma curve, white balance, saturation, color and so on can be programmed through the SCCB interface.
        High sensitivity for low illumination applications
        Low - voltage suitable for embedded applications
        The standard SCCB interface, compatible with I2C interface
        - RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output format
        - support VGA, CIF, and from CIF to 40x30 in various sizes
        Sampling mode - VarioPixel
        ] the influence of automatic control functions include: automatic exposure control, automatic gain control, automatic white balance automatically to eliminate light stripes, automatic black level calibration. Image quality control including color saturation, hue, gamma, sharpness Antis bloom
        The ISP can eliminate the noise and bad pixel compensation function
        - support image zoom
        The lens light loss compensation
        50/60Hz automatic detection
        The automatic adjustment of saturation (UV)
        The automatic adjustment of edge enhancement
        The automatic adjustment of noise reduction
        Key parameters:
        (1) photosensitive array 640x480; (2) IO voltage 2.5V to < 20 mu a dormancy of 3.0V (the internal LDO to nuclear power supply of 1.8V); (3) the power work 60mW/15fpsVGAYUV; 4); (5) operating temperature of - 30 DEG C to 70 DEG C; (6) stability of 0 DEG to 50 DEG C; (7) the output format (8-bit)? YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 raw RGB data
        Light (8) dimension 1/6"(9) field of view angle of 25 degrees (10) the maximum rate of VGA 30fps
        Sensitivity of 1.3V/ (Lux-sec); (11) signal to noise ratio of 46 dB; (12) dynamic range 52dB
        (13) browsing mode line by line; (14) electron exposure 1 to 510 line; (15) pixel area of 3.6 m x 3.6 m; (16) dark current 12 MV / s at 60 DEG C;

        ?

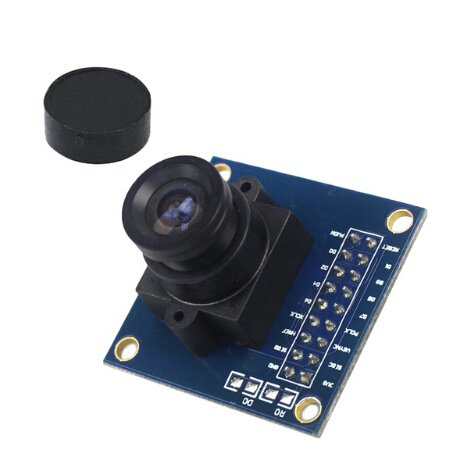

        Ov7670 camera.jpg

        ?

        Packaging & Shipping


        • Shipping:?UPS / Fedex / DHL / TNT / EMS. Pls contact us directly which way your preferred.

        ? ? ? ? ???For the Countries & Regions where EMS cannot deliver, pls choose other shipping ways.

        Company Information

        Shenzhen Xeefee Electronics Co., Ltd?was set up in 2007. It is previously known as XieFeng (H.K.) Electron Limited which was found in 2003. The company relies on Hong Kong, establishes in Shenzhen. Specialize in Electronic Components: IC/Transistor/Diode/Capacitor/Resistor etc. Our clients are all over the world, in different time zones. Especially in Europe.?

        The total sale volume is above 10 million dollars in 2016. After years of development, Our Company has lots of old customers which are the manufacturers of audio, LCD, PC, PCB.?
        Most of our products are new and original, any interests please contact me.

        FAQ
        • Is your parts new and original ?

        Answer : Yes !Our parts could accept any kinds of testing , if there is any quality problems we will take responsible .

        • What is your warranty ?

        Answer :?Within 60 days after package have been received .?

        • How to pay the order ?

        Answer : We could accept TT , Escrow , Paypal , Western Union and Alipay .After the order have been confirmed the invoice will be sent for reference .Then make payment as the way you like , as soon as the payment have been confirmed ,we will arrange shippment within 3 days .

        • Quality problems?

        Answer :?If?there?is?any?quality?problems or questions ,?we?could offer technical support or return service .

        • ?What is your lead time ?

        Answer :There are no lead times for in-stock products.?Most of the parts could be shipped out within 3 days after payment have been confirmed.

        ?

        • May I have a sample for testing ??

        ?

        Answer :Yes ! Only to pay shipping cost ,free samples could be sent for testing .
